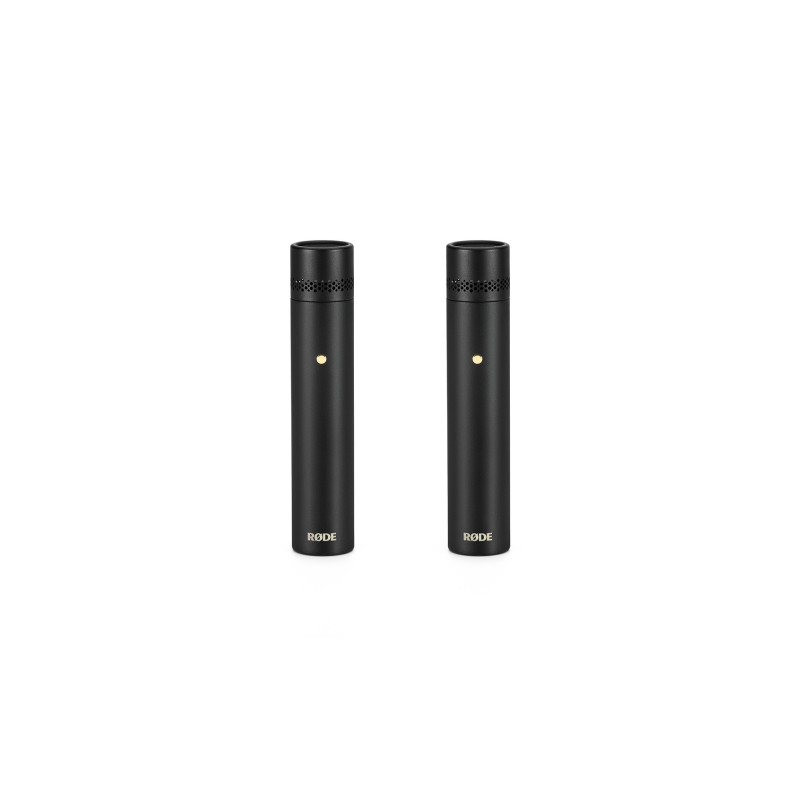

The TF-5 sets a new standard in small-diaphragm condenser microphones. Its all-new capsule is manufactured to sub-micron tolerances, resulting in an unprecedentedly smooth sound and frequency response. The TF-5 features the same clear, airy sound that RØDE's other small-diaphragm mics are known for, but adds a warmth often lacking in smaller mics of this type, giving it unique versatility. Features. • Precision-matched small-diaphragm cardioid microphones • Very low self-noise • Flat frequency response • Focused cardioid polar pattern • Warm, accurate sound • Suitable for most critical recording situations • Designed in collaboration with Grammy®-winning recording engineer and classical music producer, Tony Faulkner ACOUSTIC AND ELECTRICAL SPECIFICATIONS Principle Acoustics: Externally biased capacitor, Active electronics: JFET impedance converter with bipolar output buffer, Polar pattern: Cardioid, Frequency range: 20Hz - 20kHz, Frequency response: 30Hz - 20kHz ±3dB // 20Hz - 20kHz ±4dB, Output impedance: 63Ω, Signal-to-noise ratio: 80dB, Equivalent noise: 14dB SPL (A-weighted, in accordance with IEC651), Input SPL @ 1% THD: 135 dB SPL (1kHz @ 1% THD, 600Ω load), Sensitivity: -29 dB re.1 Volt/Pascal or better (35 mV @ 94dB SPL @ 1kHz), Dynamic Range: 112.6 dB (1kHz at maximum sound pressure level), Power Requirements: 7mA @ 48V phantom power, MECHANICAL SPECIFICATION Weight (g): 114g (single microphone) Dimensions: Length: 98.7 mm Diameter: 20 mm
